Hitch Pins

Hitch Pins

These pins feature high shear strength, an easy grip pull ring, and a high tension hair pin cotter. Made of 1039 or 4140 steel with a Rockwell hardness of 38-44, they are zinc plated with a dichromate dip for corrosion resistance. Stocked in diameters from 3/8" to 1 1/2" and lengths from 3 1/2" to 9".

Group codes Represented: DFHP

Hitch Pins
Part#
Size
Effective Length Under Collar To Hole
Hole Size
Ring Size
Collar Size
(See Diagram Above)
37437DFHP
3/8 x 4 3/8
4
5/32
A
1/2
50475DFHP
1/2 x 4 3/4
4
3/16
B
7/8
50650DFHP
1/2 x 6 1/2
5 3/4
3/16
B
7/8
62475DFHP
5/8 x 4 3/4
4
3/16
B
1 1/8
62650DFHP
5/8 x 6 1/2
5 3/4
3/16
B
1 1/8
75475DFHP
3/4 x 4 3/4
4
3/16
C
1 3/8
75700DFHP
3/4 x 7
6 1/4
3/16
C
1 3/8
87800DFHP
7/8 x 8
7
13/64
C
1 3/8
100800DFHP
1 x 8
7
13/64
C
1 1/2
112775DFHP
1 1/8 x 7 3/4
7
1/4
C
1 1/2
125775DFHP
1 1/4 x 7 3/4
7
1/4
C
1 5/8
137900DFHP
1 3/8 x 9
8
1/4
C
2 1/2
150900DFHP
1 1/2 x 9
8
1/4
C
2 1/2
** All Dimensions in inches

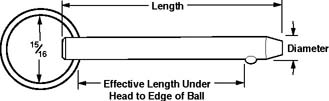

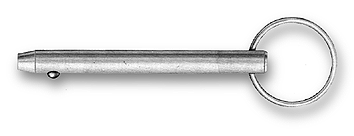

Cotterless Hitch Pins

This special Hitch Pin is self-locking and reusable. It needs no cotter pin because of it's locking ball mechanism. Made from 1215 zinc plated steel with easy grip pull ring and stainless ball locking mechanism. They are easy to insert and remove for quick disconnect applications without special tools. Variations in the pin removable force are available according to customer specifications. Diameters from 3/16" to 1//2" and lengths from 1" to 5".

Group codes Represented: CHP
Part# Example: 25100CHP

Hitch Pins With Lynch Pins Attached

This is an assembly of the same high quality Hitch Pins found earlier in this section with the added protection of an attached Lynch Pin and Chain. The Hitch Pin is made of 1039 or 4140 steel and are zinc plated with a dichromate dip for corrosion resistance. The Lynch Pin is electroplated and dichromate dipped. Chains are 12" long and zinc plated. Diameters range from 1/2" to 1" and lengths from 4 3/4" to 8". See table for exact sizes.

Group codes Represented: DFHP
