Elevator Bolts

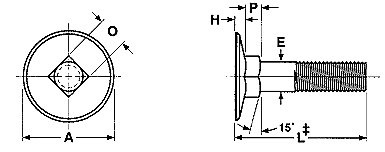

For use in applications with rubber belting, these bolts are made with a #1 Norway Head. Also available in a flanged head or slotted and ribbed head (#3 Eclipse). Stocked in diameters from 1/4" to 38" and lengths from 3/4" to 3", Measured from top of head.

Nominal
E
A
H
O
P
Body Diameter
Head Diameter
Head Height
Square Width
Square Depth
Max
Min
Max Edge Sharp
Min Edge Sharp
Min Edge Flat
Max
Min
Max
Min
Max
Min
1/4 0.26 0.237 1.008 0.969 0.938 0.098 0.078 0.28 0.245 0.219 0.188
5/16 0.325 0.298 1.227 1.188 1.157 0.114 0.094 0.342 0.307 0.25 0.219
3/8 0.388 0.36 1.352 1.312 1.272 0.145 0.125 0.405 0.368 0.25 0.219
